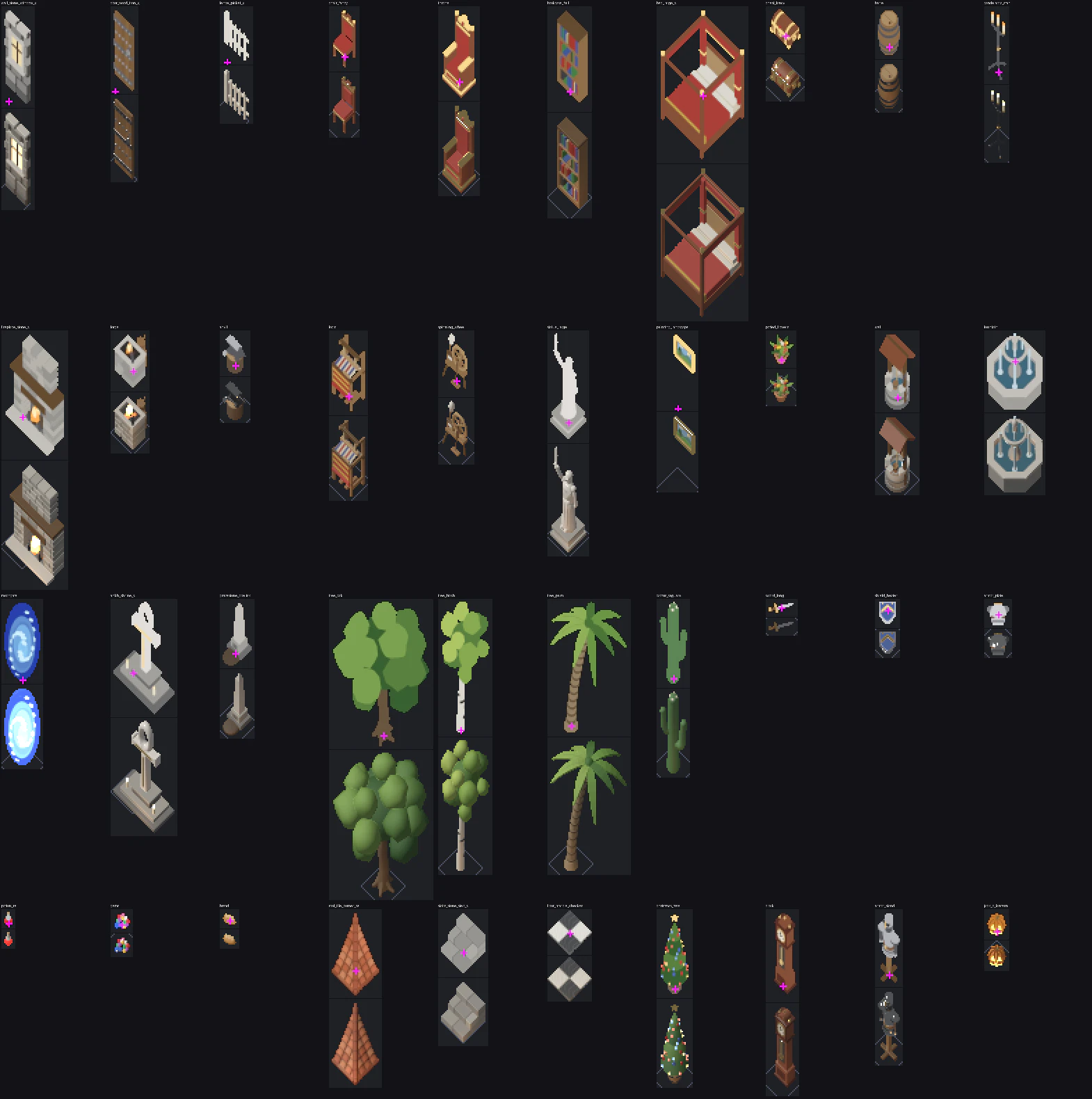

UO Renaissance objects (statics and items)

The catalog of world objects to bake as sprites: housing pieces, furniture, lights, crafting stations, decoration, dungeon and civic props, nature, and items lying on the ground. It covers what a player saw in Britannia around the Renaissance release (2000): pre-made houses and keeps, towns, dungeons, the Lost Lands. It is our own modelling of those object types (no UO art is used). The ground terrain is in uo-base-tiles.md.

Every object is a procedural Blender script baked by uo-baker (format: sprite-format.md, pipeline: asset-pipeline.md). Each group owns a manifest file assets/manifest.d/<group>.toml and a script folder tools/blender/models/<group>/; shared helpers are in tools/blender/models/object_kit.py. Review with python3 tools/gallery.py --group assets/manifest.d/<group>.toml -o sheet.png.

Conventions

• Scale (1 unit = 1 tile): human 1.8, wall 2.12 (48 px storey), door 1.89 (42 px), chair seat 0.45 / back 1.0, table top 0.77 (level 17), counter 1.0 (level 22), bed top 0.5, bookcase/armoire 2.0, barrel 0.9, chest 0.5, candle 0.15.
• Facings: objects with a front bake directions = 4 (frames North, East, South, West; the model is built facing south, −Y). UO had separate art per facing; the client picks the frame. Wall-mounted items (paintings, sconces, shelves) are built against the north edge facing south: the South frame hangs on a north (x) wall, the East frame on a west (y) wall.
• Walls and fences follow the wall convention (decision #16, #22): a piece sits inside its tile, flush with the north edge (_x, runs east–west) or the west edge (_y), corners/posts at the north-west corner; origin at the tile centre.
• Multi-tile objects: origin at the centre of the north-west-most tile, the object extends east (+X) and south (−Y); manifest footprint = [w, h]. Multi-tile objects with a front (marked 4 below with a footprint) are baked as two assets instead of four facings, <name>_s and <name>_e (front south / east, footprints [w, h] / [h, w]), as UO did.
• Pixel art: every model sits on the texel lattice (pixel_kit.py, decision #60, rules in docs/asset-pipeline.md). Silhouettes bold, details whole texels, colour contrast over fine geometry; muted, warm UO palette (object_kit.PALETTE).

Legend: 4 = 4 facings; WxH = footprint; p: = one script, assets selected by params.

Wave 1

walls — housing wall sets (wall_<material>_<piece>)

One script per material (tools/blender/models/walls/wallset_<material>.py), the piece picked by params = { piece = "..." }. Pieces: x, y, corner, post, window_x, window_y, doorway_x, doorway_y (doorway = opening for a door sprite, 12 texels wide × 42 levels high). Height 48 levels (one storey, 2.12 units), 2 texels thick.

The full sets (all but cave and palisade) also have the pieces the building generator (crates/uo-buildings, #101) orders in assets/requests/wall-pieces.md, built by walls_kit from each set's own wall and post code (decision #102):

• diag_a (/, north-east to south-west: a camera-facing horizontal run) and diag_b (\, edge-on), plus _window variants: full height, run between the corner posts of the wall grid (1 texel inside the north and west tile edges), so they meet the straight walls and posts of a cut corner exactly; the frame is sheared (2 texels thick along Y, ends on X planes), so it stays on the lattice and joins the next diagonal tile. Window u -3..3 (8.5 texels along the slant). They block their tile, no edge. Their outlines sit on half-pixel rows and stay softer than straight walls.
• low_x, low_y, low_corner, low_post: parapets of balconies and terraces, the set's wall cut at level 16 under a 2-level coping (posts cap one level higher).
• slit_x, slit_y: an arrow slit 2 texels wide at levels 22..36 through the back half of the wall, splayed one texel and one level on the front half.
• crenel_x, crenel_y, crenel_corner, crenel_post: tower-top parapets, solid to 10 under a string course to 12, merlons 12..22 capped to 24, 4 texels merlon and 4 gap (x runs at u -8..-4 and 0..4, y runs mirrored), so both runs have a merlon at the north-west corner and the corner piece an L-shaped corner merlon; posts are merlons.

Material	Look (UO houses / places)	Pieces
stone	grey cut ashlar blocks (stone house, tower, keep, castle)	all 22
brick	red brick with mortar, stone sill/lintel (brick house)	all 22
wood	vertical/horizontal planks on a frame (wooden house, shops)	all 22
log	stacked round logs with notched corners (log cabin)	all 22
plaster	white plaster with dark timber framing (two-story plaster, Tudor)	all 22
sandstone	tan sandstone blocks (sandstone patio house, desert towns)	all 22
marble	polished white marble, pilasters (villa, Nujel'm palace)	all 22
fieldstone	rough round fieldstones in mortar (fieldstone house, farms)	all 22
dungeon	dark rough-cut dungeon masonry, mossy base	all 22
cave	natural rock wall, irregular top (caves, mines)	x, y, corner, post
palisade	sharpened upright logs (orc forts, camps)	x, y, corner, post, doorway_x, doorway_y

doors_fences — doors, gates, fences

Sprite	Notes
door_<kind>_<axis>_<state>	p: kind ∈ wood, wood_iron (iron bands), dark, light (pale wood), metal, barred (iron bars), secret (stone, flush with a stone wall); axis x/y (in an x / y doorway); state closed/open (open = swung 90° inward on its hinge)
gate_<kind>_<axis>_<state>	p: kind ∈ wood (fence gate), iron (wrought iron gate)
fence_<kind>_<piece>	p: kind ∈ wood (split rail), picket (white pickets), iron (wrought iron), stone (low dry-stone wall ~0.8), hedge (clipped box hedge ~1.1), rope (posts and rope); piece ∈ x, y, corner, post

furniture

Sprite	Notes		Sprite	Notes
chair_wood	4, plain ladder-back		armoire	4, tall wardrobe, two doors
chair_fancy	4, padded seat and back, carved		armoire_fancy	4, dark wood, carved crown
chair_straw	4, rush seat, rustic		dresser	4, chest of drawers
throne	4, high back, red cushion, gilt		bookcase_full	4, rows of coloured books
stool	three-legged		bookcase_empty	4
footstool	low padded		shelf_wall	4, wall shelf with jars/pottery
bench_wood	4, plain bench		nightstand	4
bench_fancy	4, backrest bench		chest_wood	4, iron-bound wooden chest
table_small	square side table		chest_metal	4, metal chest with rivets
table_writing	4, desk with ink and paper		chest_fancy	4, gilt treasure chest
table_long	4, 2x1, plain long table		strongbox	small iron box
table_large	2x2 heavy dining table		box_wood	small wooden box
table_round	round pedestal table		crate_small	small crate (crate exists)
counter	4, shop/bar counter		barrel	closed barrel
bed_small	4, 1x2, single bed		barrel_open	open barrel with water
bed_large	4, 2x2, double bed, canopy posts		keg	barrel on its side on a cradle
bedroll	4, rolled-out bedroll		basket	wicker basket
dressform	4, tailor's dummy		basket_round	round basket with apples
screen	4, folding screen		cradle	4

lights_crafting — light sources and crafting stations

Sprite	Notes		Sprite	Notes
candle	single lit candle (emissive)		forge	stone forge with glowing coals
candles	cluster of candles		forge_large	4, 2x1
candlestick	table candlestick		anvil	4
candelabra	3-arm table candelabra		loom	4, with cloth on it
candelabra_stand	tall standing candelabra		spinning_wheel	4
lamp_post	street lamp post with glass lantern		flour_mill	2x2, millstone and sacks
lantern	lantern on the ground		oven	4, stone oven/hearth
lantern_wall	4, lantern on a wall bracket		water_trough	4, 2x1
sconce_wall	4, candle sconce		scale	merchant scales
torch_wall	4, wall torch		dye_tub	tub of dye
torch_standing	torch on a pole		cooking_pot	pot on a tripod over a fire
brazier_tall	tall iron brazier		hide_stretcher	4, hide on a frame
campfire	logs, flames, stone ring		training_dummy	4
fireplace_stone	4, 2x1, stone fireplace		archery_butte	4, straw target
fireplace_brick	4, 2x1		pickpocket_dip	4, dummy with a pouch
			sawhorse	4, carpentry sawhorse with a plank

decor_home — household decoration

Sprite	Notes		Sprite	Notes
rug_red	1x1 patterned rug		globe	globe on a stand
rug_blue_large	2x2		hourglass
rug_fur	bear-skin rug, life size (2 x 2 tiles, ≈ 2.2 m, #83)		books	pile of books
painting_portrait	4, wall		lectern	4, open book on a stand
painting_landscape	4, wall		scrolls	pile of scrolls
tapestry	4, wall hanging		goblets	goblets and a jug
banner	4, heraldic wall banner		dinner_set	plates of food
statue_small	figure on a pedestal		kettle
statue_large	1x1, life-size human statue		wine_rack	4, wall rack with bottles
bust	bust on a column		bottles	group of bottles
vase			flour_sack
urn	large amphora/urn		sacks	pile of grain sacks
pottery	jars and pots		wheat_sheaf
potted_plant			hay_bale
potted_flowers			pitcher_bowl	water pitcher and bowl
flower_vase			birdcage	on a stand
harp	standing harp		lute	lute leaning
drum			chess_table	4, table with a chessboard

civic_dungeon — town, graveyard, dungeon and magic

Sprite	Notes		Sprite	Notes
well	stone well with roof and bucket		chains_wall	4, shackles on a wall
fountain	2x2 stone fountain with water		iron_maiden	4
signpost	4, crossroads signpost		guillotine	4
shop_sign	4, hanging sign on a bracket		stocks	4
gravestone_cross			gallows	4, 2x1
gravestone_round			moongate	blue emissive gate
gravestone_obelisk			moongate_red	red (Felucca)
coffin	4, closed		teleporter	glowing floor glyph
coffin_open	4, with skeleton		stalagmite
sarcophagus	4		crystals	emissive crystal cluster
altar	4, stone altar with cloth		mine_cart	4, with ore
pentagram	3x3 floor pentagram		mine_rails	p: x/y rail piece
ankh_shrine	4, 2x1, large ankh (virtue shrine)		tent	2x2 canvas tent
bone_pile			market_stall	4, 2x1, awning
skeleton	lying skeleton		cobweb	4, corner web
skulls	pile of skulls		gibbet	4, hanging cage

nature — trees, plants, rocks

Trees, bushes, shrubs, ferns, tall grass, flowers, mushrooms and the single rocks are built from the Quaternius CC0 nature packs (decision #74): tools/blender/models/nature/packs.py imports the converted models in assets/models/nature/ (one pack model per variant, the client picks one per tile), scales them to real size (1 unit = 1 m: grown trees 10-17 m, apple 6.5-8, sapling 3.5-4.5), cuts them at the ground and recolours the leaf cards per species. tree_willow adds hanging leaf-card curtains to a pack crown. rocks (cluster), mushroom_giant, cacti, reeds, vines, lily pads, stump and logs stay procedural (plants.py, rocks.py; the procedural trees.py is retired). Trees keep footprint = [1, 1] (the trunk's tile). Every tree with leaves (all but tree_dead) has bare = true: its bare twin in bare/ is the same variant without leaves and fruit, which the client shows while the crown is hidden near the player (decision #98).

Sprite	Notes		Sprite	Notes
tree_oak	broad crown		bush	round bush
tree_ash			bush_flowering
tree_birch	white bark		shrub	small
tree_walnut			fern
tree_willow	drooping		grass_tall	tuft of tall grass
tree_cedar	layered conifer		flowers_red
tree_pine	tall conifer		flowers_white
tree_yew	dark, dense		flowers_yellow
tree_palm			mushrooms	cluster
tree_jungle	buttress roots, broad leaves		mushroom_giant	dungeon giant mushroom
tree_dead	bare branches		cactus_saguaro
tree_apple	fruit tree		cactus_barrel
tree_cypress	narrow		cactus_prickly	prickly pear
tree_sapling	young tree		reeds
rock_small			vines	4, wall vines
rock_medium			lilypads	on water (flat)
boulder			stump
rocks	cluster		log_fallen	4, 2x1

items_gear — weapons, armour, tools (lying on the ground)

Small items lying flat or propped; read at 32 px by silhouette and colour.

sword_long, sword_broad, katana, dagger, axe_battle, axe_double, mace, war_hammer, spear, halberd, quarterstaff, bow, crossbow, shield_heater, shield_buckler, armor_plate, helm_plate, armor_chain, pickaxe, shovel, hatchet, saw, smith_hammer, tongs, fishing_pole, sewing_kit, scissors, pitchfork, scythe, mortar_pestle, skillet, backpack, pouch.

Wave 2

items_goods — resources, reagents, potions, food

ingots (p: iron, copper, gold, silver), ore_pile, logs_pile, boards, hides, cloth_bolt, gems, gold_coins; reagents reg_black_pearl, reg_mandrake, reg_garlic, reg_ginseng, reg_nightshade, reg_spider_silk, reg_sulfurous_ash, reg_blood_moss; potion_<colour> (p: red, yellow, orange, purple, green, black); food bread, apples, cheese, ham, fish, pie, wine_bottle, ale_mug, meat_leg, carrots.

roofs_stairs_floors

Roofs roof_<material>_<piece> (p: material ∈ slate, thatch, shingle, tile; piece ∈ slope_s, slope_n, slope_e, slope_w, ridge_x, ridge_y, corner_se, corner_sw, corner_ne, corner_nw). Roof contract: a piece's base is at Z = 0 and the client places it at wall height; slopes rise 32 levels across a tile (ROOF_COURSE = 32 px ≈ 1.41, a 55° pitch, so course edges draw as 1:1 lines or verticals; slope_s low on the south edge), so each further course of roof tiles sits 32 px higher; the roof script takes rise for other pitches. Stairs stairs_<material>_<piece> (p: wood, stone; step_s, step_e, block; one tile rises 12 levels, four tiles = one 48-level storey); floors floor_<material> (stone, marble, marble_checker, wood_light, wood_dark, sandstone, brick, carpet_red, carpet_blue, carpet_gold).

misc_extra — mechanisms, magic, shops, harbour, seasonal

Sprite	Notes		Sprite	Notes
trap_spikes	floor spike trap (raised spikes)		weapon_rack	4, wall rack with weapons
trap_plate	pressure plate		armor_stand	4, stand with plate armour
lever_wall	4, wall lever		shield_display	4, wall with crossed swords and shield
switch_floor	floor switch		display_case	4, glass-topped case with goods
spellbook_stand	4, open spellbook on a stand		anchor	ship's anchor lying
crystal_ball	on a stand, faint glow		rope_coil
magic_orb	glowing orb on a pedestal		fishing_net	net heaped with floats
runebook	rune book lying		dock_planks	p: x/y, plank deck tile
rune_stone	recall rune on the ground		dock_post	mooring post
alchemy_table	4, table with flasks and burner		buoy
cauldron	iron cauldron on legs, bubbling (faint glow)		ship_wheel	4
treasure_pile	heap of gold and gems		christmas_tree	decorated tree
gold_ingot_stack			pumpkin
skull_candle	skull with a candle		jack_o_lantern	carved, glowing
bell	4, hanging bell on a frame		snowman
clock	4, grandfather clock		gift_box	wrapped present

Status

All groups baked, reviewed in contact sheets and committed on feat/uo-objects (484 sprites; 610 with the diagonal, low, slit and crenel wall pieces of #102). Review a group with python3 tools/gallery.py --group assets/manifest.d/<group>.toml -o sheet.png.

Group	Sprites	Notes
walls	208	11 materials; diagonals, low walls, slits, crenels for the 9 full sets; doorways meet the doors contract; cave repeats one rock profile per tile (variants later)
doors_fences	60	door leaves fit the doorways; gates hinge on the fence post (y gates at the north end)
furniture	41	table_long, bed_small, bed_large as _s/_e
lights_crafting	35	fireplaces, forge_large, water_trough as _s/_e
decor_home	36	wine_rack stands against the wall; lute lies flat
civic_dungeon	36	ankh_shrine, gallows, market_stall as _s/_e; mine_rails_x/y
nature	37	log_fallen_x/y; giant mushroom spots glow faintly
items_gear	33
items_goods	35	ingots_<metal>, potion_<colour>
roofs_stairs_floors	56	10 roof pieces × 4 materials (no separate ridge cap between back-to-back slopes yet)
misc_extra	33	dock_planks_x/y

Weakest reads noted in review (candidates for a polish pass): gravestone_cross, skulls/bone_pile detail, iron_maiden face, cobweb, cactus_prickly, tree_jungle crown, flour_mill hopper, cheese wedge, ship_wheel, armor_stand, helm_plate.

In the client

The client places objects as uo_proto::objects::StaticObjects (sprite, tile, absolute z, facing) on a static layer of impostors; see docs/rendering.md › Static objects.

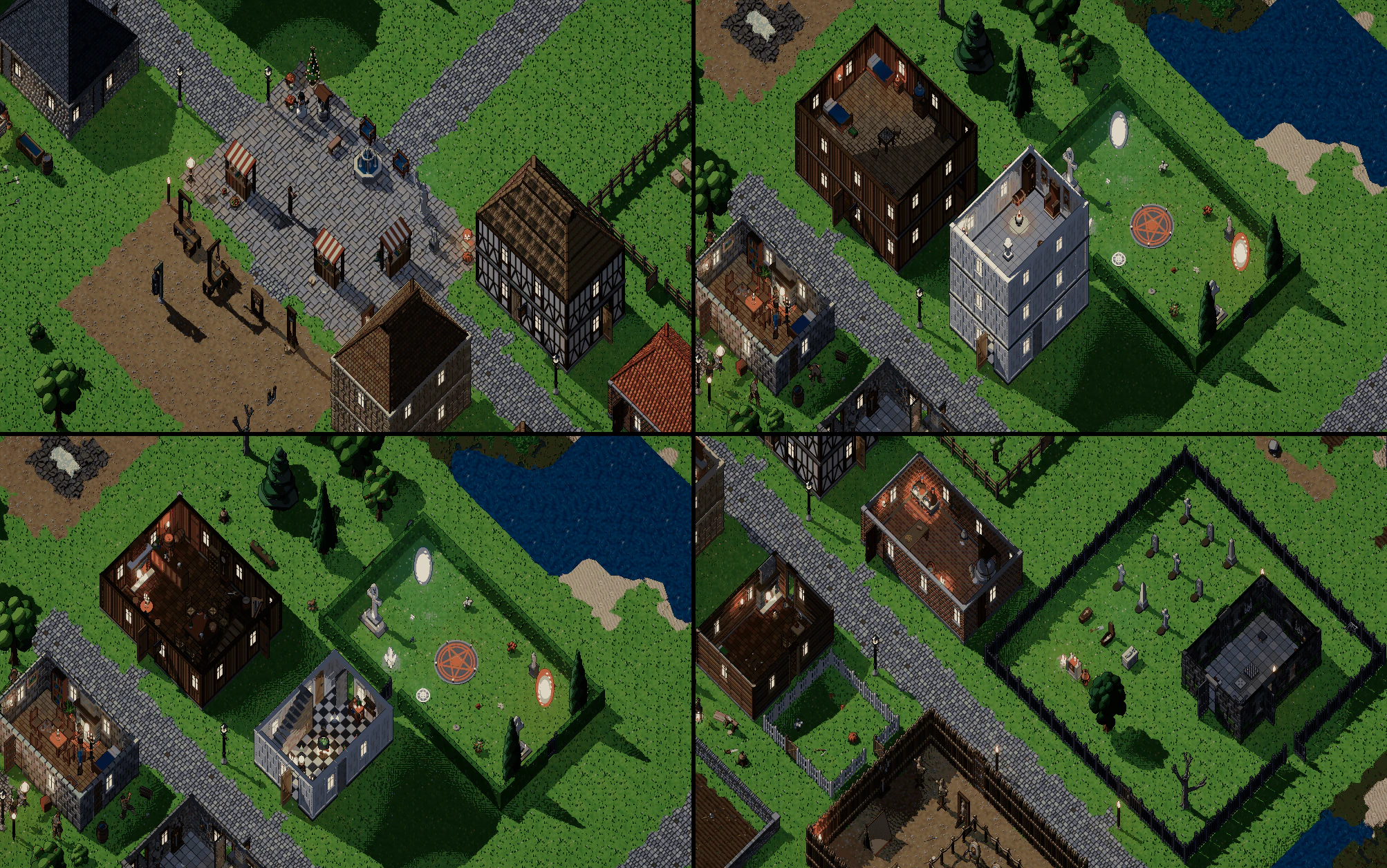

Demo village

The offline demo (crates/uo-client/src/village.rs) is a village of 90 x 56 tiles in the middle of a 128 x 128 map that places every object of the catalog (a test checks it against assets/manifest.d; 2222 statics of 484 sprites):

Building	Walls	Storeys, roof	Inside
player's home	stone	1, slate	table set for dinner, fireplace, bed, bookcase; secret back doors
tavern	wood	2, shingle (ridge)	bar with kegs and bottles, tables, musicians; inn rooms above
mage tower	marble	3, tile (ridge)	alchemy lab, study with books and globe, archmage's hall with throne
weaver	plaster	2, thatch (ridge)	loom, spinning wheel, dye tub, dress form; bedroom above
bakery	brick	1, tile (ridge)	ovens, flour mill, sacks, bread and pies
gaol	dungeon	1, slate (ridge)	barred doors, chains, iron maiden, traps, lever
smithy	fieldstone	1, slate	large forge, anvil, armour, ingots; metal doors
provisioner	sandstone	2, shingle (ridge)	counter with scales and coins, display case; strongroom above
hunter's cabin	log	1, thatch (ridge)	fireplace, furs, bedroll, bows; open doorways
stockade	palisade	—	training dummies, archery range (rope fence), tents, camp
mine	cave	—	rails, mine cart, crystals, stalagmites, giant mushroom

Around them: cobbled streets and a flagstone plaza (fountain, well, statues, market stalls, bell, a seasonal corner), a justice square (gallows, stocks, guillotine, gibbet), a mage garden behind a hedge (pentagram, moongates, shrines, teleporter), a graveyard behind a wrought-iron fence, a paddock (split rail), a vegetable patch (pickets), a farm field (dry-stone wall), a desert garden, an orchard, a pond with a dock and, in the south-east, a mason's yard with one exhibit per full wall set (crenellated and low corners with their posts, a \ and a / diagonal run, slits in an x and a y wall). All 28 doors, 8 gates, 6 fence and 11 wall sets, 40 roof pieces (ridges come from roofs with an odd short side), 6 stair pieces and 10 floors are used.

• Storeys: storey s stands at z + WALL_HEIGHT · s (48 px each); its floor covers the interior except the stairwell of the flight from below. A flight is four stair tiles (step_s climbing north or step_e climbing west) rising 12 px each, with stairs_*_block pieces stacked under the higher steps; the top step ends level with the next floor.
• Wall rings: corner piece on the north-west tile, _x along the north and south rows, _y along the west and east columns, posts at the other three corners; a window on every wall tile whose offset along the wall is 2 mod 3; doorway pieces (with a door, or open) where the plan says. Fences use the same ring with gates replacing pieces.
• Roofs: uo_proto::objects::hip_roof(material, x, y, w, h, z) gives every tile of a w x h building the piece of its nearest outer edges (slopes, hip corners, ridges), one course (+1.0) higher per tile inwards, eaves at the top storey's wall height. With an even short side the roof is a clean hip without ridge pieces; with an odd short side a ridge runs along the middle row (or column) and its end tiles, where three slopes would meet and the set has no piece, leave a small gable. The village uses both. Roofs and upper storeys hide while the player is inside (UO style).
• Lights: objects with glowing texels (candles, sconces, braziers, fireplaces, lamp posts, campfires, moongates, crystals) get a point light at their flame automatically; walls (glowing window panes) don't.

Follow-ups

• Open doors swing into the tile they stand on (south for _x, east for _y), so a door in a building's south or east wall opens outwards. Doors opening the other way need a second open state (e.g. open_out).
• The south and east walls stand just outside the roof's tiles (walls sit on the north/west edge of their tile), so their tops show a 0.09-unit ledge below the eaves on the camera side. A roof edge piece or a wider eave overhang on the south and east would hide it.
• A hip-end piece (three slopes) would allow hip roofs with an odd short side; gable-end wall pieces would allow gable roofs.
• Players can't climb stairs yet (walking is 2D on the terrain), so upper storeys are only seen, not visited; RoofView decides what is drawn.
• Statics are client-side only (the demo builds them); the server still has to own and send them (a statics list in Welcome or per region), and multi-tile blocking should come from the manifest footprint.
• Seasonal or rare variants of statics (e.g. cave walls) could use variants = N like the ground tiles; the client already picks a variant per tile for such sheets.
